2025 Beavertail 3 Axle DOG Trailer

2025 Beavertail 3 Axle Dog Trailer
100% Australian-Made. Built to Last. Backed by 37 Years of Experience.

Unmatched Performance, Tailored to You
Since 1987, has engineered thousands of heavy-duty trailers for Australia’s toughest industries. Every trailer is crafted in Ballarat, Victoria, using Australian steel and premium components. No compromises. No shortcuts. Just relentless durability.

Base Model Specifications
Starting at $76,000 + GST

ATM: Up to 25 tonnes*.
Dimensions:
• Total Length:11.0m* (Truck and trailer combo compliant with 19.0m limit).
• Deck: 7.5m
• Beavertail: 1.5m.
• Drawbar: 1.7m.
Width: 2.5m*.
Hitch: Pintle hook, Ringfeder
Chassis & Build:
• Main Chassis: Fabricated beams.
• Floor: 5mm checker plate, flush finished with in-deck tie-down points.
• Coaming Rails: 180mm PFC with integrated tie-down points.
• Cross Members: 100 x 50 x 3mm.
Axles & Suspension:
• 19.5" eight-stud axles rated to more than 16.5 tonnes in tandem axle group.
• 9-leaf underslung spring suspension.
Ramps & Backboard:
• 3000mm x 780mm hydraulic double-acting ramps with battery pack and 5mm checker plate.
• Stainless steel ramp hinge bar, load binder dogs, and chains included.
Braking System: Full air brakes with EBS and auto slack adjusters.

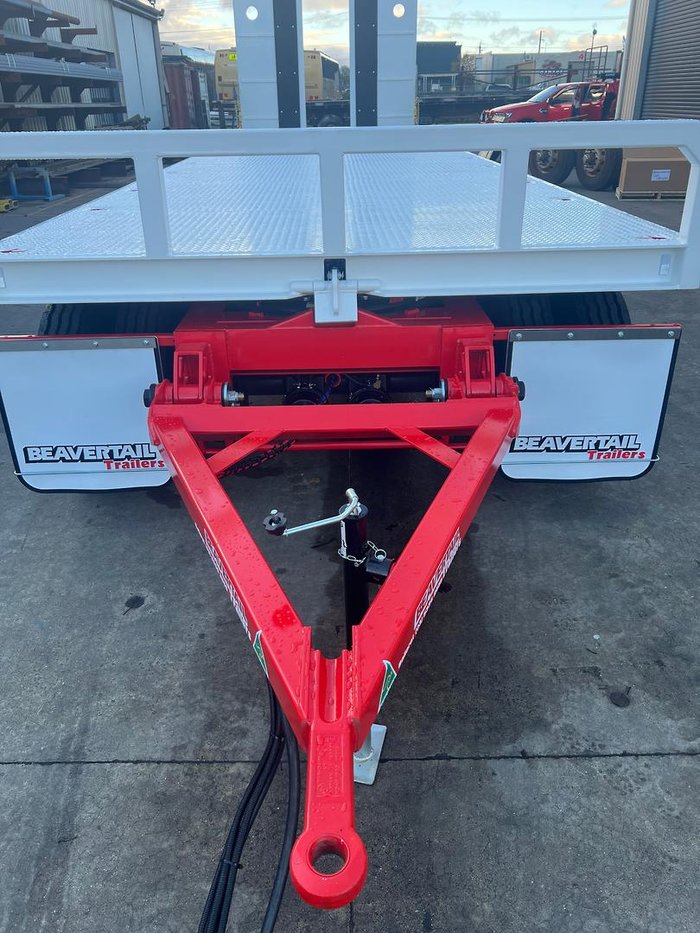

Dolly:
• Fabricated dolly with pneumatic double acting dolly lock,
• JOST ballrace turntable,
• Front and rear mudflaps with anti-sail brackets.
Wheels & Tyres:
• Steel rims.
• 265/70 R19.5" tyres.
• Laser axle alignment for enhanced durability and performance.
Electrics & Lighting:
• LED multi-volt harness system with ADR-compliant signage and reflectors.
• Combination taillights.
• Electrical plug and air fittings suited to your truck.
Paint & Finish:
• Industrial-grade two-pack polyurethane paint – your choice of colour.
Safety & Convenience:
• Drawbar top wind swivel mount landing leg.
• 1500mm Front drop-in hurdle / 75x75x4 Front hurdle.
• 175-amp Anderson plug for charging battery systems.
• Rear stabilizer legs and mudguards with Beavertail mud flaps.
• Comprehensive owner’s manual, safety chains, and 2 years structural warranty.

Optional Extras: Tailored to Your Needs
• Airmax suspensions.
• Alloy or chrome rims.
• Additional toolboxes.
• Spare tyre and carrier.
• 3-point sidestep.
• Bi-Fold ramps 4.0m.
• Side gates.
• Container pins.
• Rope rail.
• Rear drop-in hurdle
• Polished 60L water tank.
• Wider, single-length ramps.
• Hubo meter.
• Right way scale digital/analog.
• Oversize kit (flags, signage, and beacon).
• Hammer well or custom-designed auger racks.
• Custom paint colours and detailing.
• Wheel nut indicators (recommended).
And many more….

*Total length, width, Carry Capacity and ATM of the trailer may vary.
Excludes stamp duty, registration, and delivery (available at cost).
Photos are for reference only, and the price applies to base variants only.

Built Strong, Built Right, Built for You.
When Every Kilometre Demands Durability.
